dCS Lina Network DAC

$12,750

In stock
or quick checkout with

365-Day Returns

Learn More

Fedex Overnight Shipping

Learn More

Pay with Crypto

Learn More

Description

Specifications

Download Specification Sheet

Download User Manual

Title Description

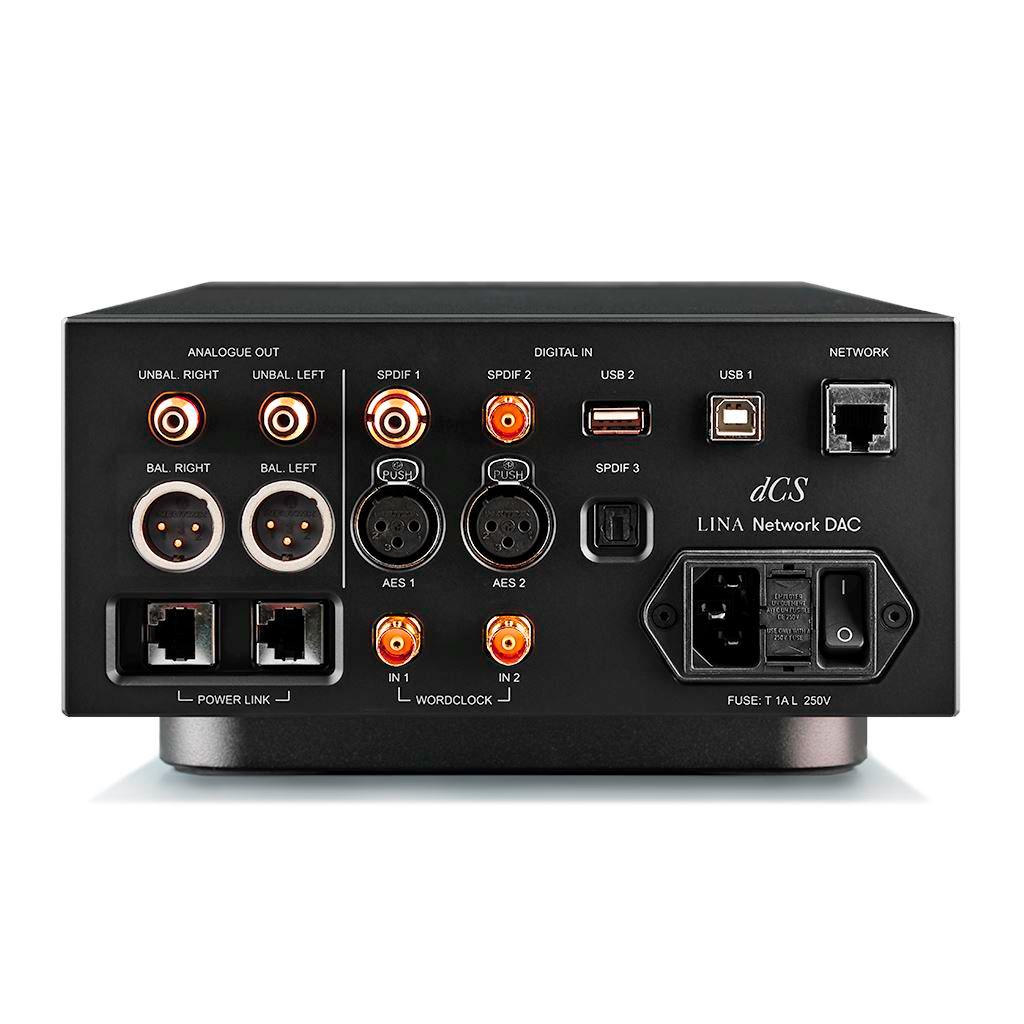

Analogue Ouputs • 1 x stereo pair 3 pin balanced XLR
• 1 x stereo pair unbalanced RCA
Digital Inputs • 2 x AES/EBU on 3 pin XLR 44.1-384kS/s
• 1 x S/PDIF BNC Coax 44.1-192kS/s
• 1 x S/PDIF on RCA 44.1-192kS/s
• 1 x Toslink 44.1-96kS/s
• 1 x USB Type B 44.1-384kS/s, PCM and DSD, DSDx2 in Async Mode
• 1 x USB Type A connector for mass storage devices (navigated using Mosaic)
L-R Crosstalk Better than –115dB0, 20Hz-20kHz
Streaming Compatibility Supports the following platforms and services:
• UPnP
• Qobuz
• Deezer
• Tidal
• Internet Radio
• Spotify
• Apple AirPlay 2 (support at 44.1 or 48kS/s)
• RoonReady
Frequency Response (set to filter 1) • Fs = 44.1 or 48kS/s +/-0.1dB, 10Hz-20kHz
• Fs = 88.2 or 96kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >38kHz
• Fs = 176.4 or 192kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >67kHz
• Fs = 352.8 or 384kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
• DSD64 +/-0.1dB, 10Hz-20kHz -3dB @ >90kHz
• DSD128 +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
Residual Noise (6v output setting) • 16-bit data: Better than –96dB0, 20Hz-20kHz unweighted
• 24-bit data: Better than –113dB0, 20Hz-20kHz unweighted
Sample frequencies and formats Supports the following audio formats and sample rates:
• 44.1-384kHz
• DSD 64, 128
• Native DSD + DoP (input dependent)
• FLAC, WAV, AIFF, MQA
Electronics • dCS Ring DAC and Digital Processing Platform on flex ridged PCB
• Stream Unlimited S800
• Automatic voltage switching
Upsampling Multi-stage DXD oversampling with switchable DSD
Word Clock • 2 x Word Clock inputs on 75 Ω BNC connectors
• Will lock to 44.1-192kHz
Additional Specifications
Title Description
Filters • PCM mode: 2 filters + MQA
• DSD mode: 4 progressive filters
Crossfeed Settings • Standard crossfeed
• dCS Enhanced crossfeed (E1)
• dCS Enhanced crossfeed (E2)
Power • IEC inlet & power switch on rear panel
• 90-120v & 220-240v, 50/60Hz nominal
• Automatic voltage switching
• Power synchronised with other dCS control link products (RJ45)
Residual Noise (6v output setting) • 16-bit data: Better than –96dB0, 20Hz-20kHz unweighted
• 24-bit data: Better than –113dB0, 20Hz-20kHz unweighted
Spurious Responses Better than –105dB0, 20Hz-20kHz
Finish Black machined aluminium with crystal LED display
Product Dimensions / Weight 121.5mm (H) x 220mm (W) x 339mm (D) 7.4kg
Shipping Dimensions / Weight 320mm (H) x 360mm (W) x 530mm (D) / 10.3kg
Included with your dCS Lina Streaming DAC • 1 x mains cable
• 2 x XLR [0.5m]
• 1 x Ethernet cable [2m]
• 1 x Power Link cable [0.5m]
