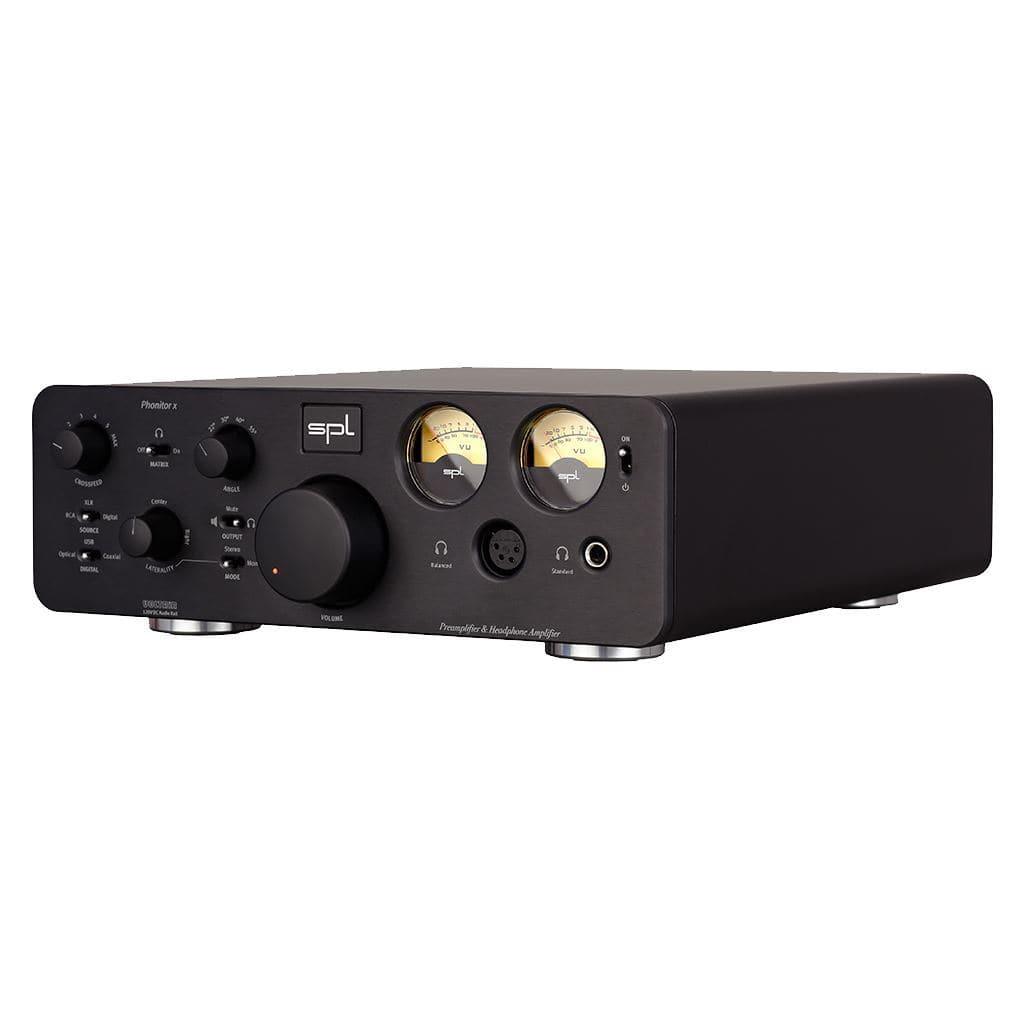

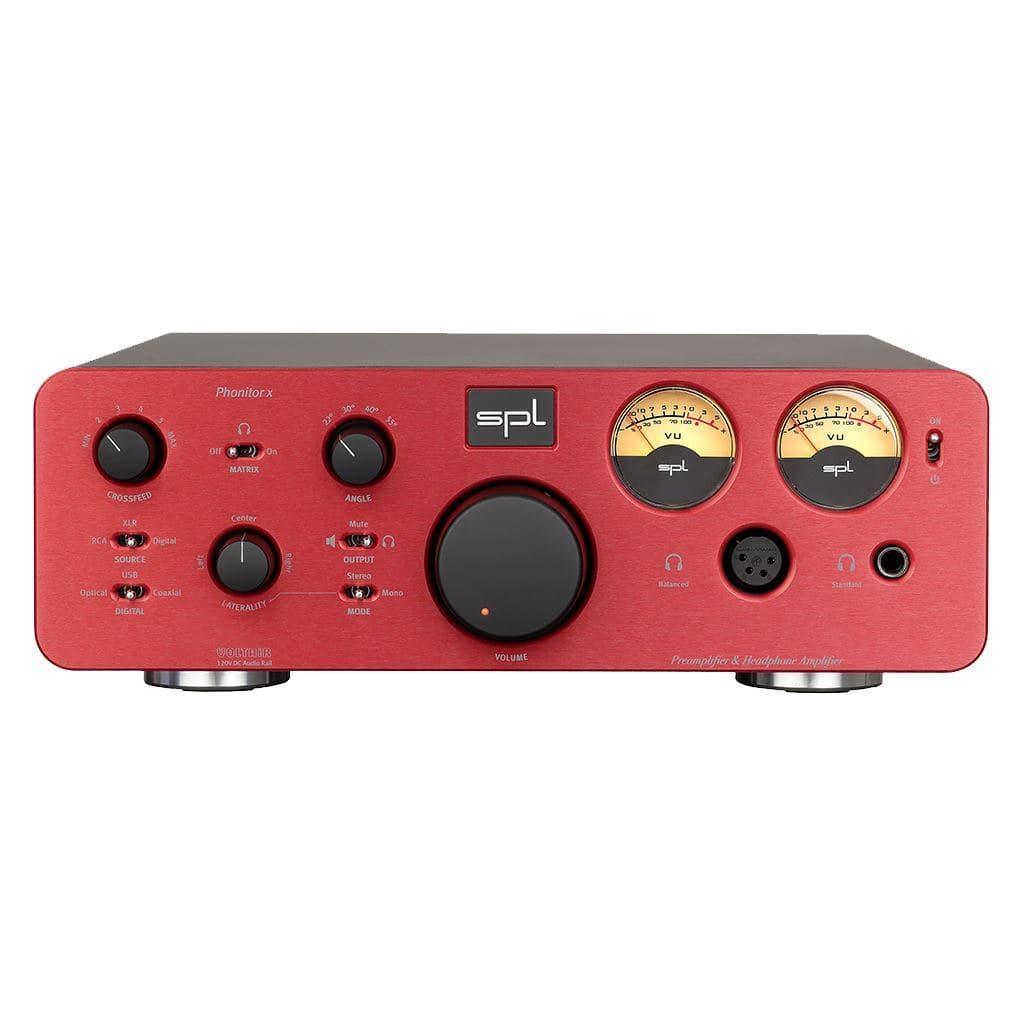

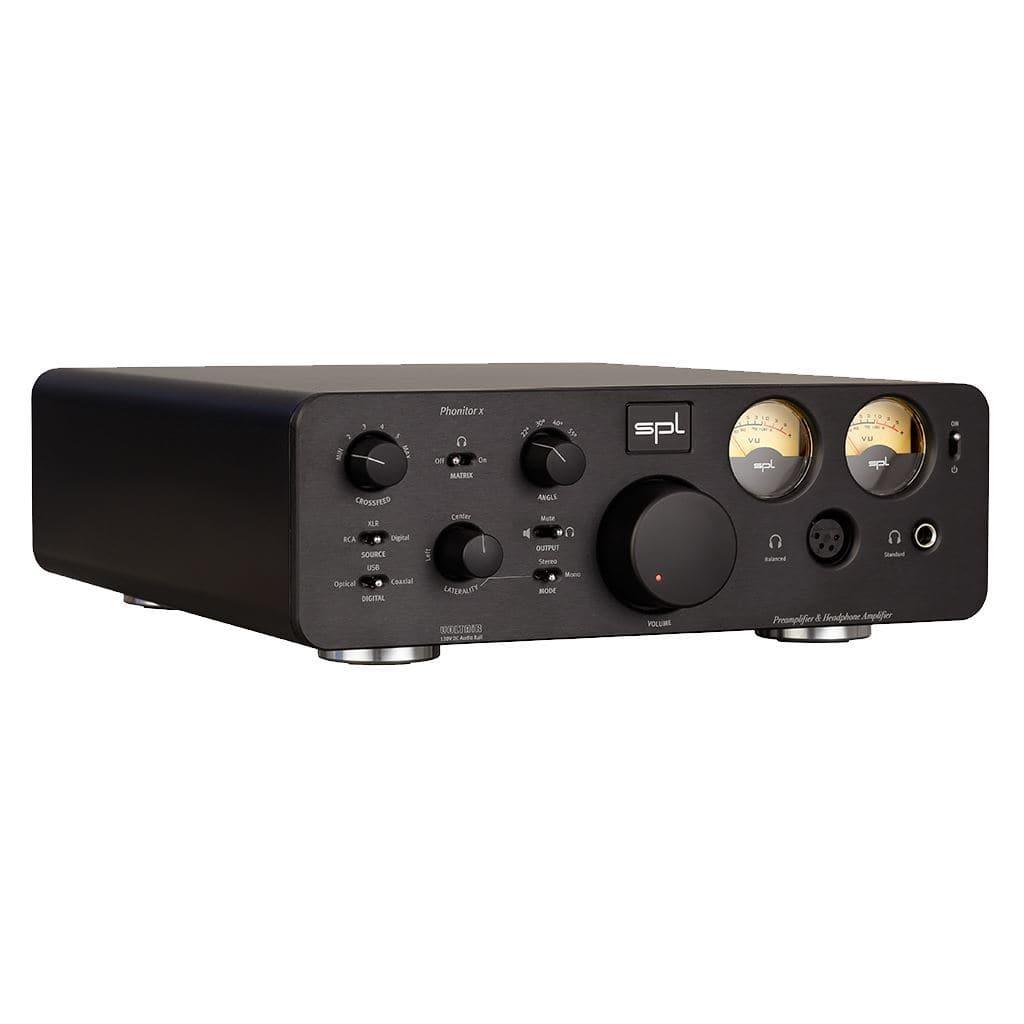

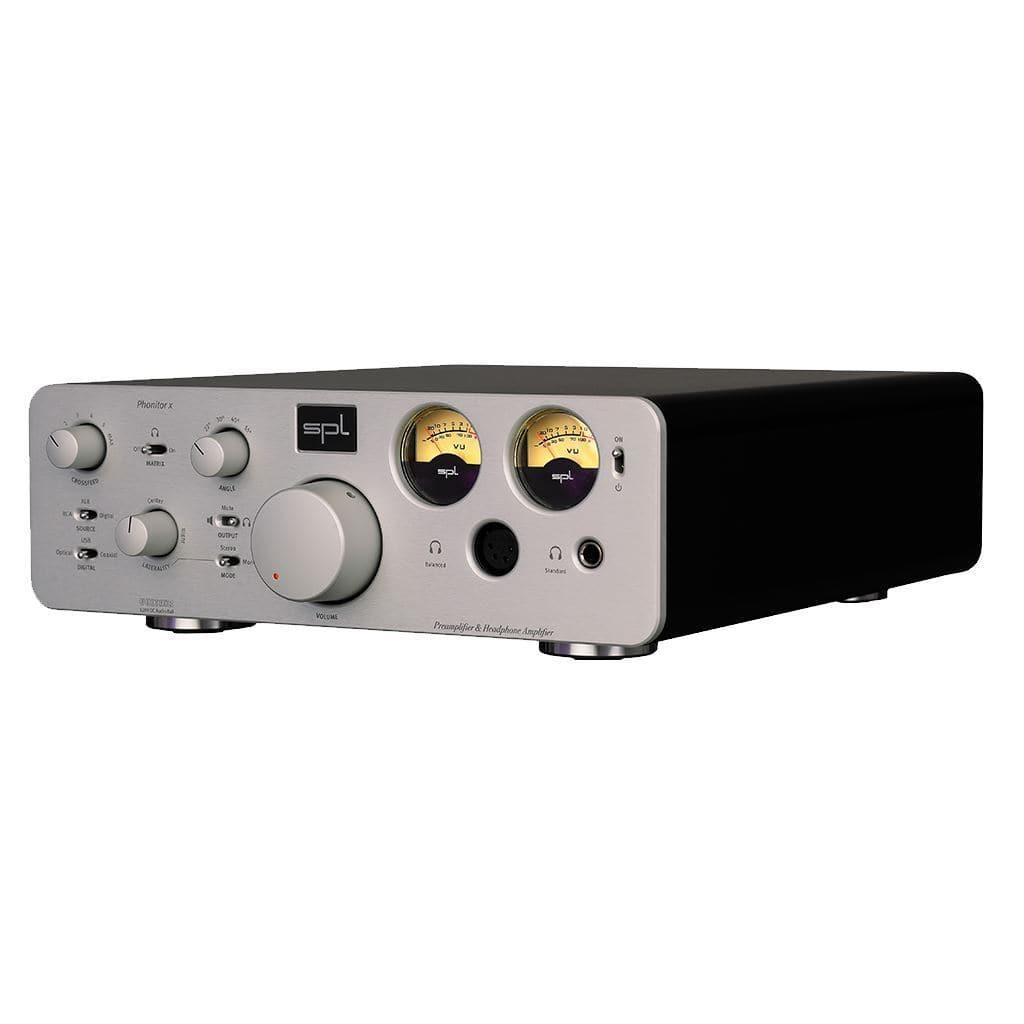

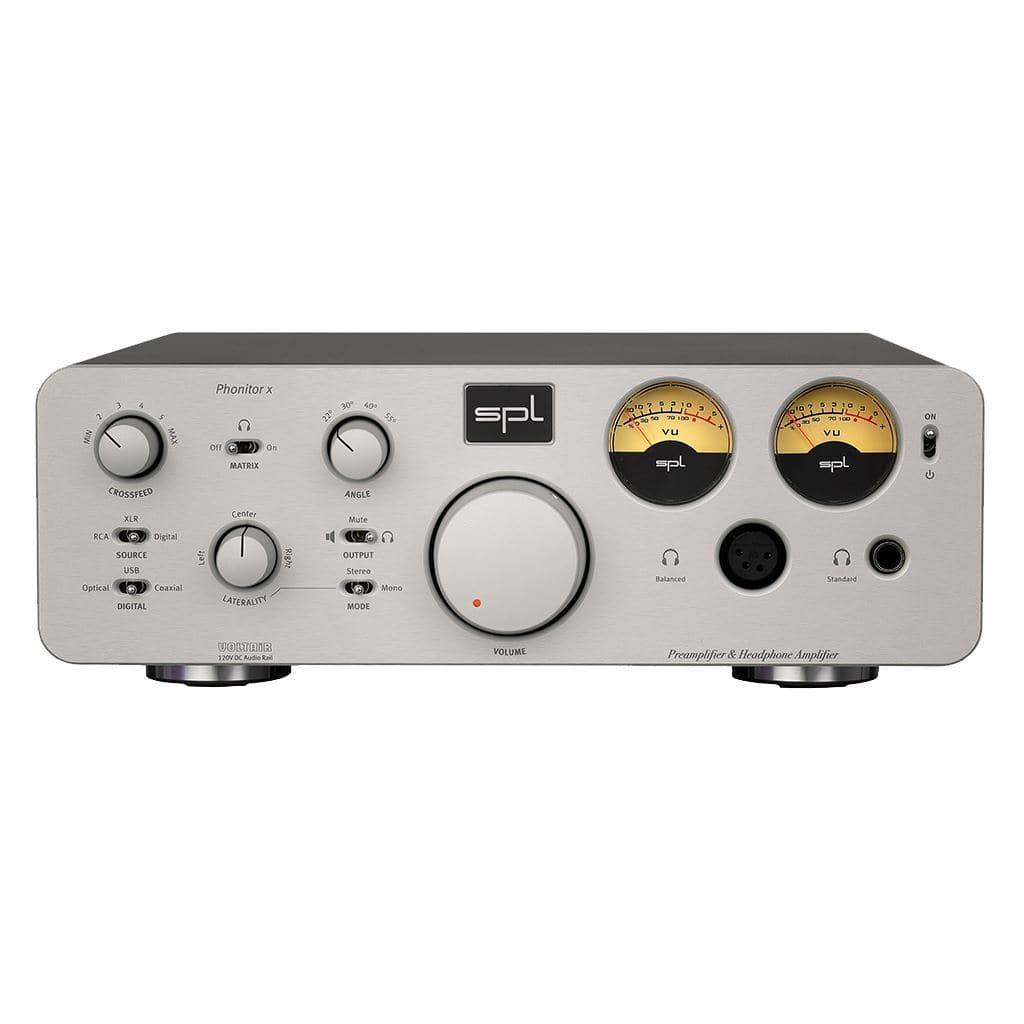

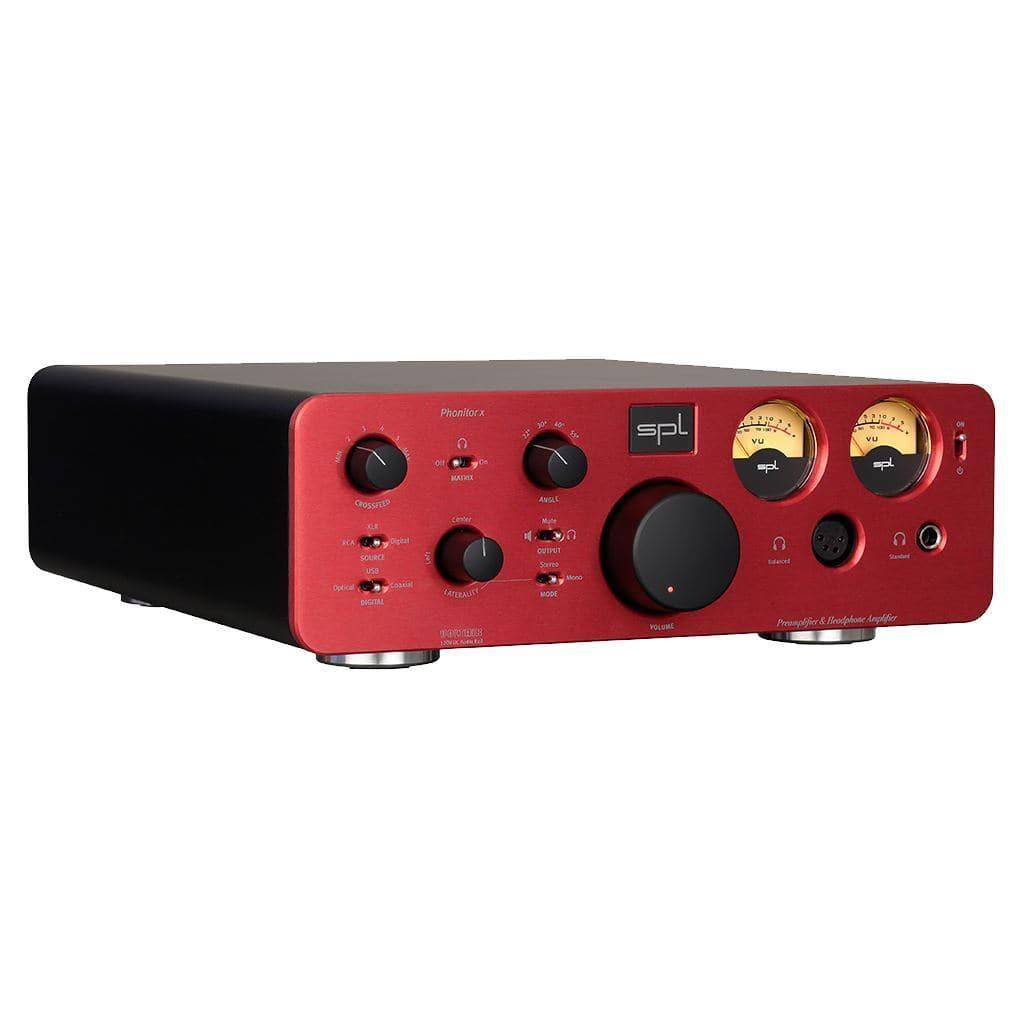

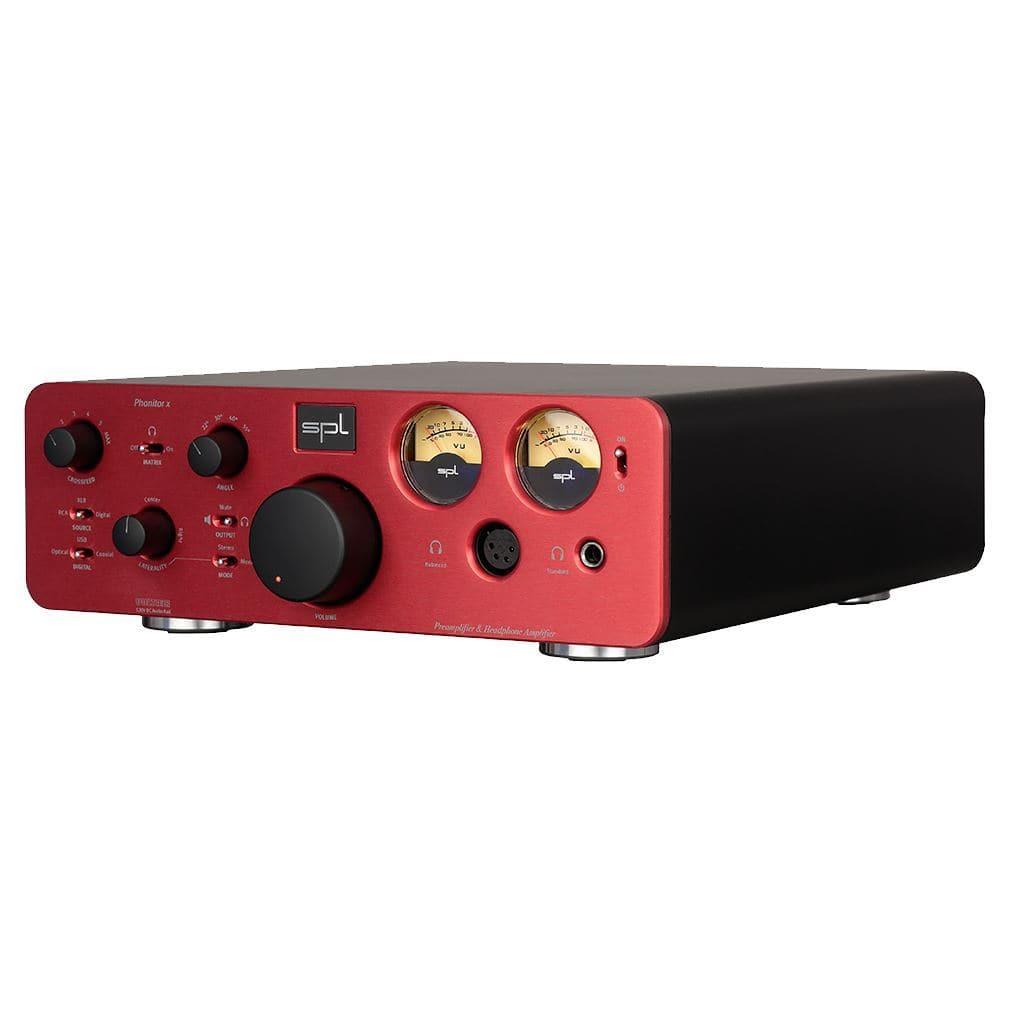

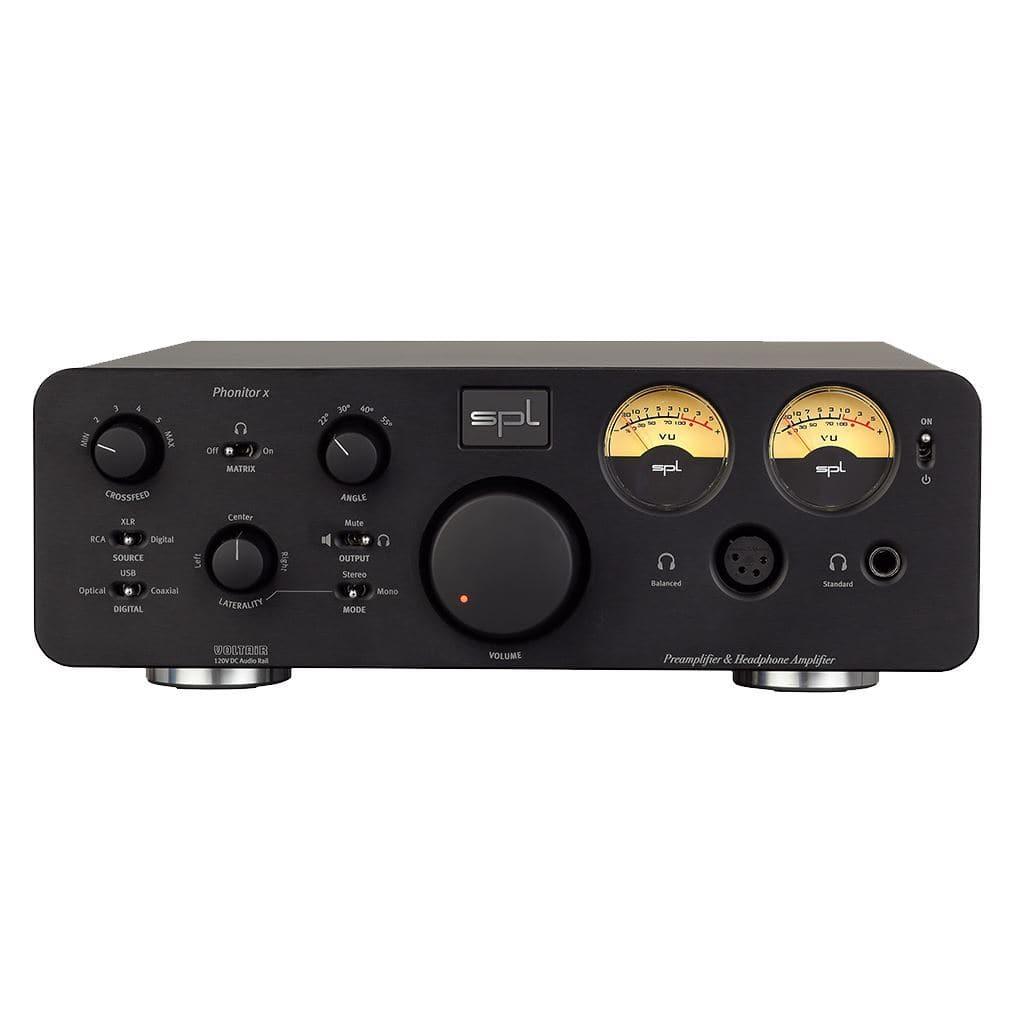

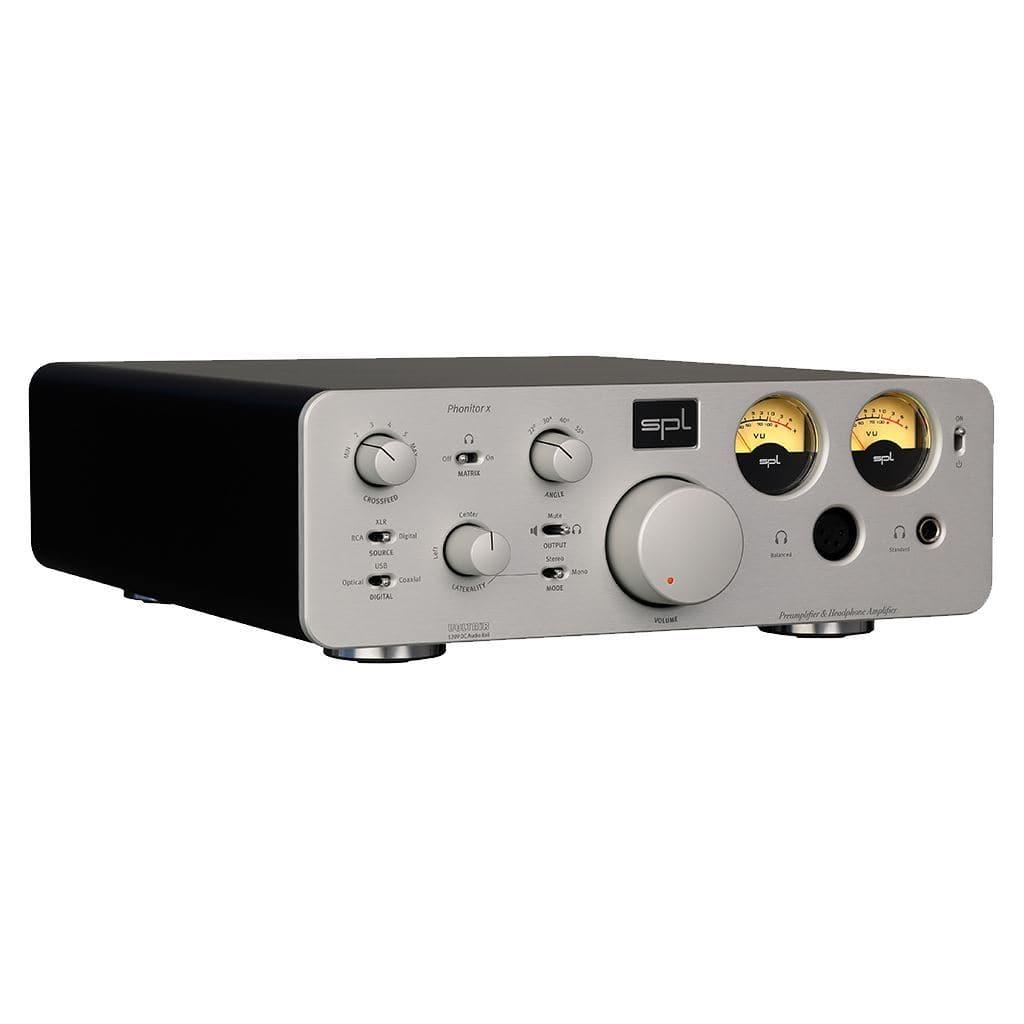

SPL Phonitor X Headphone Amp

SPL Phonitor X Headphone Amp

$2,499.00
  • 120V rail headphone amplifier and preamplifier
  • Separate connections and power amplifiers for headphone driven balanced and unbalanced
  • Suited for all headphones with impedances >10 ohms
  • Balanced and unbalanced analog inputs (XLR and RCA)
  • Optional digital inputs: USB, coaxial and optical
  • Optional DAC: 192 kHz and 24 Bit, Win driver supplied, Apple Class compliant
  • Balanced and unbalanced analog outputs (XLR and RCA)
  • Innovative Phonitor Matrix: speaker-equivalent listening on headphones
  • Laterality control: super-fine balance control
  • Mono switch function
  • Volume remotely adjustable (learns any IR remote control)
  • Maximum output power: 2 x 3.7 W (into 120 ohms)
  • Frequency response: 10 Hz - 300 kHz (-3 dB)
  • THD+N: 0.00091 % (HP), 0.00085 % (Line)
  • Dynamic range: 135.5 dB (HP), 136.3 dB (Line)
  • AMP CTR connection with Performer power amplifier for coupled On/Off switching
  • Made in Germany
loading

Headphones.com is proud to be an early adopter accepting payments online via cryptocurrency.

A portion of all sales from Headphones.com will be donated to help children with hearing loss.

Learn More
  • Description

    The SPL Phonitor X Headphone Amplifier + Preamplifier is the ultimate headphone amplifier. It offers both balanced and unbalanced connections for headphones. With up to 3.7 W output power the Phonitor x delivers an impressive performance. The revolutionary Phonitor Matrix delivers the most realistic playback on headphones. As almost all music was mixed for speaker playback the Phonitor Matrix lets you experience music on headphones as being played back through speakers. The Phonitor X is not just a headphone amplifier, but also an excellent preamplifier that can also drive power amplifiers or active monitors. All in all five input sources can be connected. Two of which are analog stereo inputs (XLR und RCA) and three more are digital stereo inputs (USB, coaxial and optical).

    • 120V rail headphone amplifier and preamplifier
    • Separate connections and power amplifiers for headphone driven balanced and unbalanced
    • Suited for all headphones with impedances >10 ohms
    • Balanced and unbalanced analog inputs (XLR and RCA)
    • Optional digital inputs: USB, coaxial and optical
    • Optional DAC: 192 kHz and 24 Bit, Win driver supplied, Apple Class compliant
    • Balanced and unbalanced analog outputs (XLR and RCA)
    • Innovative Phonitor Matrix: speaker-equivalent listening on headphones
    • Laterality control: super-fine balance control
    • Mono switch function
    • Volume remotely adjustable (learns any IR remote control)
    • Maximum output power: 2 x 3.7 W (into 120 ohms)
    • Frequency response: 10 Hz - 300 kHz (-3 dB)
    • THD+N: 0.00091 % (HP), 0.00085 % (Line)
    • Dynamic range: 135.5 dB (HP), 136.3 dB (Line)
    • AMP CTR connection with Performer power amplifier for coupled On/Off switching
    • Made in Germany
  • Tech Specs

    XLR input

    connector
    neutrik XLR
    balanced 2-pin = (+)
    impedance
    ca. 20 k ohms
    cmr
    -82 dbu (at 1 khz)
    max. input level
    +32.5 dbu

    RCA input

    connector
    RCA
    unbalanced (single-ended)
    impedance
    ca. 10 k ohms
    max. input level
    +32.5 dbu

    digital inputs (optional)

    connectors
    RCA
    coaxial spdif
    F06
    optisch toslink
    USB
    B
    sample rates (khz)
    44.1
    48
    88.2
    96
    176.4
    192

    balanced headphone output

    Connector
    neutrik 4-pin XLR
    pin wiring
    1= l (+)
    2= l (-)
    3= r (+)
    4= r (-)
    impedance
    0.36 ohms
    damping factor
    180 @ 40 ohms
    frequency range
    10 hz to 300 khz ( -3 db)
    crosstalk at 1khz
    -90 db
    thd & n
    0.00091 % (at 0 dbu, 1khz, 100 k ohms load)
    noise (a-weighted)
    -98 dbu
    dynamic range
    130.5 db

    unbalanced headphone output

    Connector
    6.35mm TRS
    pin wiring
    tip = left
    ring = right
    sleeve = gnd
    impedance
    0.18 ohm
    attenuation factor
    180 @ 40 ohms
    frequency range
    10 hz to 300 khz ( -3 db)
    crosstalk at 1khz
    -90 db
    thd & n
    0.00091% (at 0 dbu, 1 khz, 100 k ohms load)
    noise (a-weighted)
    -103 db
    dynamic range
    135.5 db

    max. output power

    At +30 dbu @ 1 khz
    2 x 1 w at 600 ohm impedance
    2 x 2 w at 300 ohm impedance
    2x 3.7 w at 120 ohm impedance
    2x 2.9 w at 47 ohm impedance
    2x 2.7 w at 32 ohm impedance

    speaker/line outputs

    Connectors
    neutrik XLR
    balanced 2-pin = (+)
    RCA
    unbalanced (single-ended)
    frequency range
    4 hz to 300 khz (-3 db)
    crosstalk at 1 khz
    -106 db
    thd & n
    0.00085 % (at 0 dbu, 1 khz, 100 k ohms load)
    noise (a-weighted)
    -103.8 db
    dynamic range
    136.3 db

    internal operating voltages

    analog
    +/- 60 v
    digital
    + 5 v and + 3.3 v (optional)

    power supply

    mains voltage (switchable)
    230 v ac / 50 hz
    115 v ac / 60 hz
    fuses
    230 v
    t 500 ma
    115 v
    t 1 a
    power consumption
    max 40 va
    stand-by power consumption
    0.7 w
